JingWei Integrated Solar System L 5000

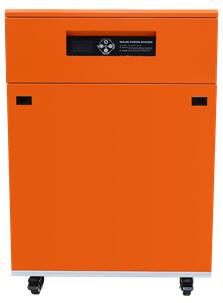

Product Item : JW-L-5000

  • Integrated Solar System

  • Installation Cost Saving and Space Saving

  • MPPT Controller Built-in

  • Inverter Built-in

  • Lead Acid Battery Built-in

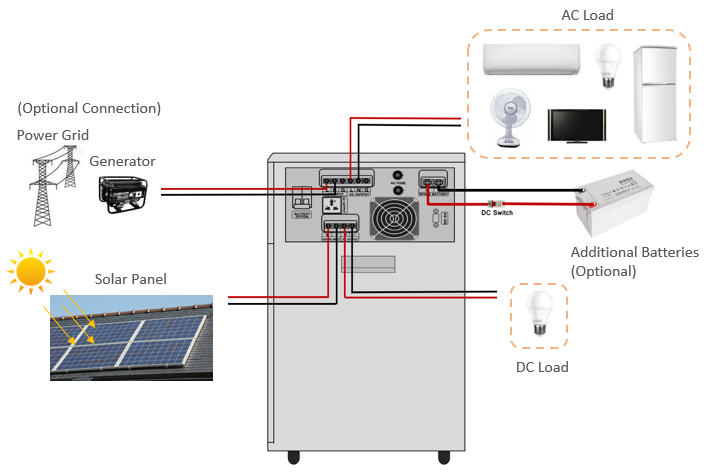

CONNECTION DIAGRAM


JingWei L solar system connection.png




TECHNICAL SPECIFICATIONS


 ModelJW-L-5000
 Output
 Rated Inverter Output Power5000W
 Surge Power10000W
 Inverter Output AC Voltage220V
 Voltage Range215 - 225V
 Output WaveformPure sine wave
 Frequency50Hz ± 1Hz
 Efficiency≥ 85% (80% if resistive load)
 Grid Output AC Voltage220V
 Voltage Range200 - 240V
 FrequencyAutomatic track
 Working ModeDC Mode / AC Mode / ECO Mode
 DisplayLCD
 Communication OptionsRS232/RS485
 Input DC
 Max PV Input Voltage88V
 Max PV Input Power2800W
 MPPT Operating Voltage Range60 - 88VDC
 Battery
 Battery TypeLead Acid Battery
 Battery Capacity9600Wh
 Input AC
 Grid Input AC Voltage Range170 - 275V
 Grid Input AC Frequency45 - 65 Hz
 General Data
 ProtectionOverload / Over Current / Short Circuit / Over Temperature
 Transfer Time≤ 4ms
 Working Temperature-10℃ - 50℃
 Cooling FanTemperature Control
 Noise≤ 55dB
 Dimensions620 x 560 x 925 mm / 24.4 x 22.0 x 36.4 inches
 Packing680 x 620 x 990 mm, 1 pc / 26.8 x 24.4 x 39.0 inches, 1 pc
 Warranty3 years
