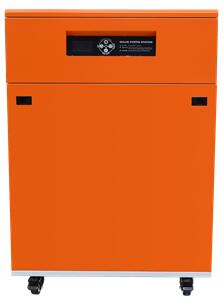

JingWei Integrated Solar System M 3000

Product Item ： JW-M-3000

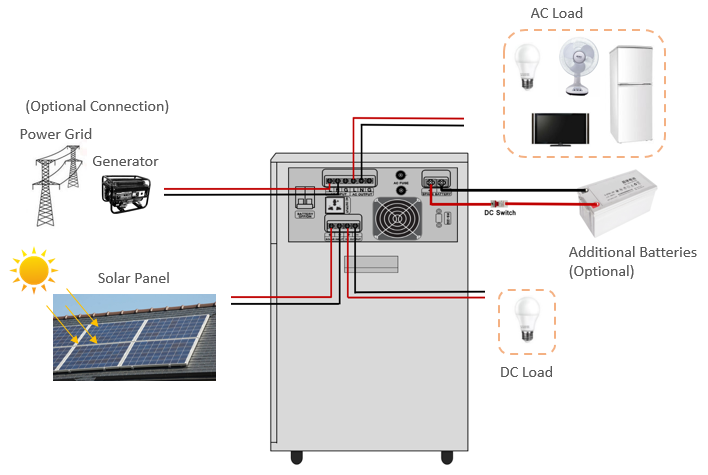

CONNECTION DIAGRAM

JingWei M solar system connection.png

TECHNICAL SPECIFICATIONS

Model	JW-M-3000
Output
Rated Inverter Output Power	3000W
Surge Power	6000W
Inverter Output AC Voltage	220V
Voltage Range	215 - 225V
Output Waveform	Pure sine wave
Frequency	50Hz ± 1Hz
Efficiency	≥ 85% (80% if resistive load)
Grid Output AC Voltage	220V
Voltage Range	200 - 240V
Frequency	Automatic track
Working Mode	DC Mode / AC Mode / ECO Mode
Display	LCD
Communication Options	RS232/RS485
Input DC
Max PV Input Voltage	88V
Max PV Input Power	1680W
MPPT Operating Voltage Range	60 - 88VDC
Battery
Battery Type	Lead Acid Battery
Battery Capacity	7200Wh
Input AC
Grid Input AC Voltage Range	170 - 275V
Grid Input AC Frequency	45 - 65 Hz
General Data
Protection	Overload / Over Current / Short Circuit / Over Temperature
Transfer Time	≤ 4ms
Working Temperature	-10℃ - 50℃
Cooling Fan	Temperature Control
Noise	≤ 55dB
Dimensions	620 x 380 x 925 mm / 24.4 x 15.0 x 36.4 inches
Packing	680 x 440 x 990 mm, 1 pc / 26.8 x 17.3 x 39.0 inches, 1 pc
Warranty	3 years
