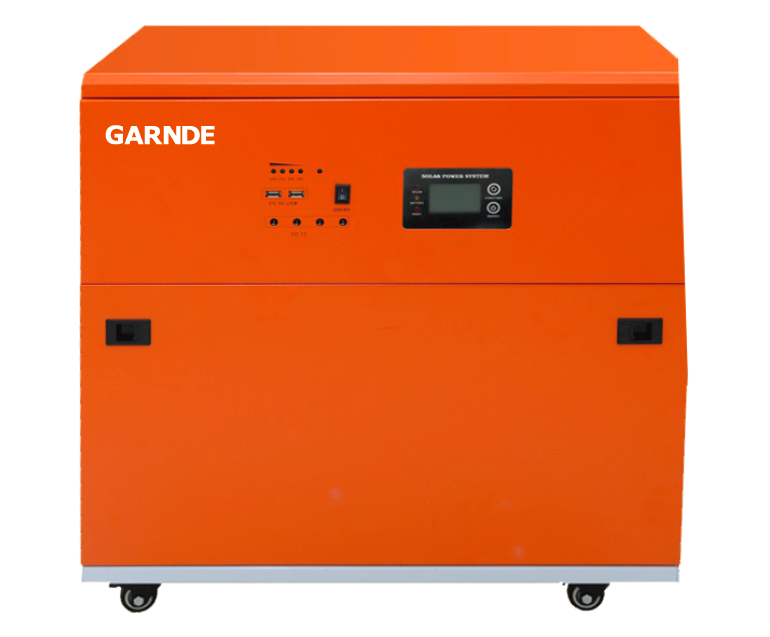

JingWei Integrated Solar System S 1000

Product Item ： JW-S-1000

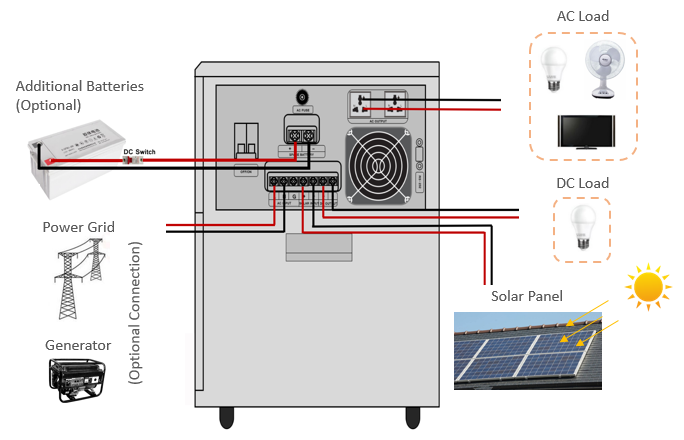

CONNECTION DIAGRAM

JingWei S solar system connection.png

TECHNICAL SPECIFICATIONS

Model	JW-S-1000
Output
Rated Inverter Output Power	1000W
Surge Power	2000W
Inverter Output AC Voltage	220V
Voltage Range	215 - 225V
Output Waveform	Pure sine wave
Frequency	50Hz ± 1Hz
Efficiency	≥ 85% (80% if resistive load)
Grid Output AC Voltage	220V
Voltage Range	200 - 240V
Frequency	Automatic track
Working Mode	DC Mode / AC Mode / ECO Mode
Display	LCD
Communication Options	RS232/RS485
DC Output	Dual USD Ports 5V; 4 DC Ports 12V
Input DC
Max PV Input Voltage	44V
Max PV Input Power	1400W
MPPT Operating Voltage Range	30 - 44VDC
Battery
Battery Type	Lead Acid Battery
Battery Capacity	3600Wh
Input AC
Grid Input AC Voltage Range	145 - 275V
Grid Input AC Frequency	45 - 65 Hz
General Data
Protection	Overload / Over Current / Short Circuit / Over Temperature
Transfer Time	≤ 4ms
Working Temperature	-10℃ - 50℃
Cooling Fan	Temperature Control
Noise	≤ 55dB
Dimensions	620 x 380 x 635 mm / 24.4 x 15.0 x 25.0 inches
Packing	680 x 440 x 690 mm, 1 pc / 26.8 x 17.3 x 27.2 inches, 1 pc
Warranty	3 years
