Product Item : HR2160, HR2700
APPLICATIONS & FEATURES
• Applicable for areas where have unstable power grid or high cost power
• Grid power priority or battery power priority can be selected and set on inverter (LCD display) in usage
• Battery power be the emergency power when grid power is off in Grid-Power-Priority mode
• Automatically switch to grid power when battery power is discharged to a certain range in Battery-Power-Priority mode
• Reliable for long-time running

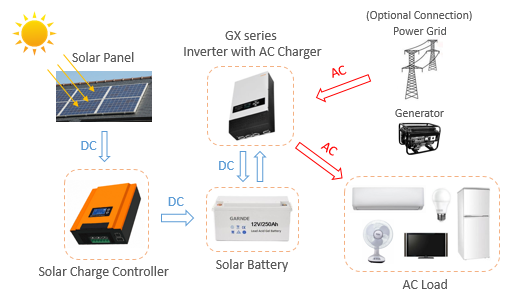

SYSTEM DIAGRAM
TECHNICAL SPECIFICATIONS
Model | HR2160 | HR2700 |
Solar Power | 2160W | 2700W |
Possible Appliance | Light Bulb, Table Fan, TV, Refrigerator | Light Bulb, Table Fan, TV, Refrigerator |
Laptop Computer, Microwave Oven, etc. | 9000BTU Air Conditioner, etc. | |
Load Power | < 3000W | < 3000W |
Solar Panel | ||
Type | Poly 270W | Poly 300W |
Quantity | 8 pcs | 9 pcs |
Dimensions | 1640 x 992 x 40mm | 1956 x 992 x 45mm |
Maximum Power Voltage (Vmp) | 31.26V | 36.72V |
Maximum Power Current (Imp) | 8.64A | 8.17A |
PV Cable and Connector | ||
Outdoor PV Cable | 4mm² | 4mm² |
2 to 1 PV Connector | 1 pair | / |
3 to 1 PV Connector | / | 1 pair |
MC4 Connector | 1 pair | 1 pair |
Solar Charge Controller | ||
Model | SM48-50 | SM48-60 |
Quantity | 1 pc | 1 pc |
Charging Mode | MPPT | |
Max. PV Input Voltage | 150V | |
Protection Grade | IP30 | |
Solar Battery (Lead Acid Gel Battery) | ||
Type | 12V 200Ah | 12V 250Ah |
Quantity | 4 pcs | 4 pcs |
Battery System Voltage | 48V | 48V |
Inverter with AC Charger | ||
Model | GX3000-48-230 | |
Rated Power | 3000W | |
Peak Power | 6000W | |
DC Input Voltage | 48VDC | |
AC Output Voltage Options (US or EU) | 110VAC / 230VAC | |
AC Output Waveform | Pure Sine Wave | |
Protection Grade | IP30 | |
Cable | ||
Indoor DC Cable, | Minimum 5 AWG Wire or RV 16mm² Wire | Minimum 3 AWG Wire or RV 25mm² Wire |
DC Circuit Breaker to Solar Charge Controller | ||
Solar Charge Controller to Battery, | ||
Battery to Power Inverter | ||
PV Mounting System | ||
Material | Aluminium or Galvanized Steel | |
General Features | ||
Working Condition | Ambient Temperature - 10℃ ~ 50℃, Humidity ≤ 95% | |
Self-protection | Over-load protection, short-circuit protection, over-heat protection |
Hero series Energy Storage Solar System.pdf
