Product Item : HR5400
APPLICATIONS & FEATURES
• Applicable for areas where have unstable power grid or high cost power
• Grid power priority or battery power priority can be selected and set on inverter (LCD display) in usage
• Battery power be the emergency power when grid power is off in Grid-Power-Priority mode
• Automatically switch to grid power when battery power is discharged to a certain range in Battery-Power-Priority mode
• Reliable for long-time running

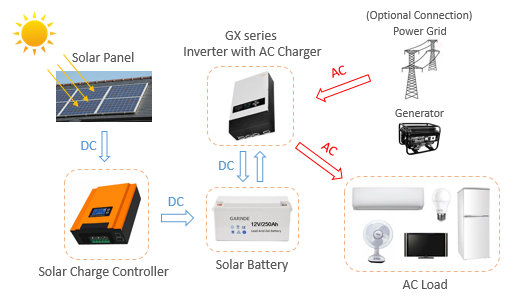

SYSTEM DIAGRAM
TECHNICAL SPECIFICATIONS
Model | HR5400 |
Solar Power | 5400W |
Possible Appliance | Light Bulb, Table Fan, TV, Refrigerator, Microwave Oven, Air Conditioner, etc. |
Load Power | < 6000W |
Solar Panel | |
Type | Poly 300W |
Quantity | 18 pcs |
Dimensions | 1956 x 992 x 45mm |
Maximum Power Voltage (Vmp) | 36.72V |
Maximum Power Current (Imp) | 8.17A |
PV Cable and Connector | |
Outdoor PV Cable | 4mm² |
3 to 1 PV Connector | 2 pairs |
MC4 Connector | 2 pairs |
Solar Charge Controller | |
Model | SM48-60 |
Quantity | 2 pcs |
Charging Mode | MPPT |
Max. Charging Current | 60A |
Max. PV Input Voltage | 150V |
Protection Grade | IP30 |
Solar Battery (Lead Acid Gel Battery) | |
Type | 12V 250Ah |
Quantity | 8 pcs |
Battery System Voltage | 48V |
Inverter with AC Charger | |
Model | GX6000-48-230 |
Rated Power | 6000W |
Peak Power | 12000W |
DC Input Voltage | 48VDC |
AC Output Voltage Options (US or EU) | 110VAC / 230VAC |
AC Output Waveform | Pure Sine Wave |
Protection Grade | IP30 |
Cable | |
Indoor DC Cable, | Minimum 3 AWG Wire or RV 25mm² Wire |
DC Circuit Breaker to Solar Charge | |
Controller, | |
Solar Charge Controller to Battery, | |
Battery to Power Inverter | |
PV Mounting System | |
Material | Aluminium or Galvanized Steel |
General Features | |
Working Condition | Ambient Temperature - 10℃ ~ 50℃, Humidity ≤ 95% |
Self-protection | Over-load protection, short-circuit protection, over-heat protection |
