MGX series MPPT Inverter 3000W

  • MGX series MPPT Inverter 3000W
  •

MGX series MPPT Inverter 3000W

Product Item : MGX3000

MGX series MPPT inverter is developed for battery backup solar system or uninterruptible power system (UPS). It is an advanced tool of power conversion. It can supply you with AC power converted from a DC power source, while it also has a battery charger of grid power AC input. With built-in MPPT solar charge controller, it will charge the battery with Maximum Power Point Tracking charging technologyIt has display board to select the inverter to work in Grid-Power-Priority mode or Battery-Power-Priority mode. MGX series MPPT inverter is a stable power source with low harmonic distortion to ensure the widest use of applications.



APPLICATION

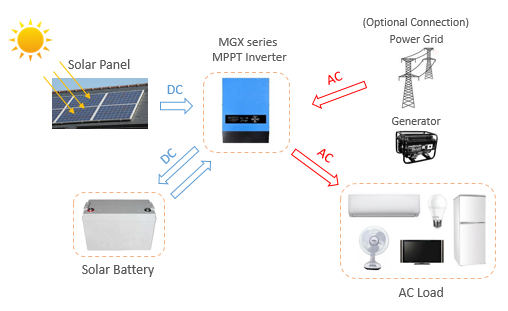

Energy Storage Solar System MGX MPPT inverter with AC charger.png



FUNCTIONAL CHARACTERISTICS

• Convert 12V/24V/48V DC power to 230V AC pure sine wave power

• Charge the batteries with solar power DC input by built-in MPPT charge controller

• Charge the batteries with grid power AC input, 0-30A adjustable

• Three working mode options by LCD display board: Grid-Power-Priority mode; Battery-Power-Priority mode; ECO mode

• Output type and socket optional

• Over load protection, over voltage protection, low voltage protection, short circuit protection, over temperature protection, reverse polarity protection



TECHNICAL SPECIFICATIONS

ModelMGX3000-50-24-230MGX3000-60-48-230
Working Mode OptionsGrid-Power-Priority Mode / Battery-Power-Priority Mode / ECO Mode
Output Rated Power3000W
 Surge Power6000W
 AC Voltage230V
 AC Voltage Range220 - 240V
 WaveformPure sine wave
 Frequency50Hz ± 1Hz
 CommunicationRS232/RS485
 Efficiency≥ 85%
DC Input DC Voltage24V48V
MPPT   Controller Max. Charging Current50A60A
PV Input Max. Input Voltage50V100V
 Max. Input Power1200W2900W
Grid   Power   AC Input AC Voltage170-275V
 Frequency50Hz ± 5Hz
Battery   Charging Charging   CurrentC6(30A)(default), C0(0A), C1(5A), C2(10A), C3(15A), C4(20A), C5(25A) can be selected and set up
Protection Overload / Overcurrent / Short circuit / Over temperature / Anti-reverse protection
Others Transfer Time≤ 4ms
 DisplayLCD
 Working Temperature-10℃  - 50℃
 Cooling FanTemperature Control
 Noise≤  55dB
 Dimensions490 x 300 x 130 mm / 19.3 x 11.8 x 5.1 inches
 Net Weight18 kgs / 40 lbs
 PackingCTN:  57 x 40 x 23 cm, 1 pc, 20 kgs / 22.4 x 15.7 x 9.1 inches, 1 pc, 44 lbs
 Warranty3 years


Garnde MGX series MPPT Inverter (EU).pdf
