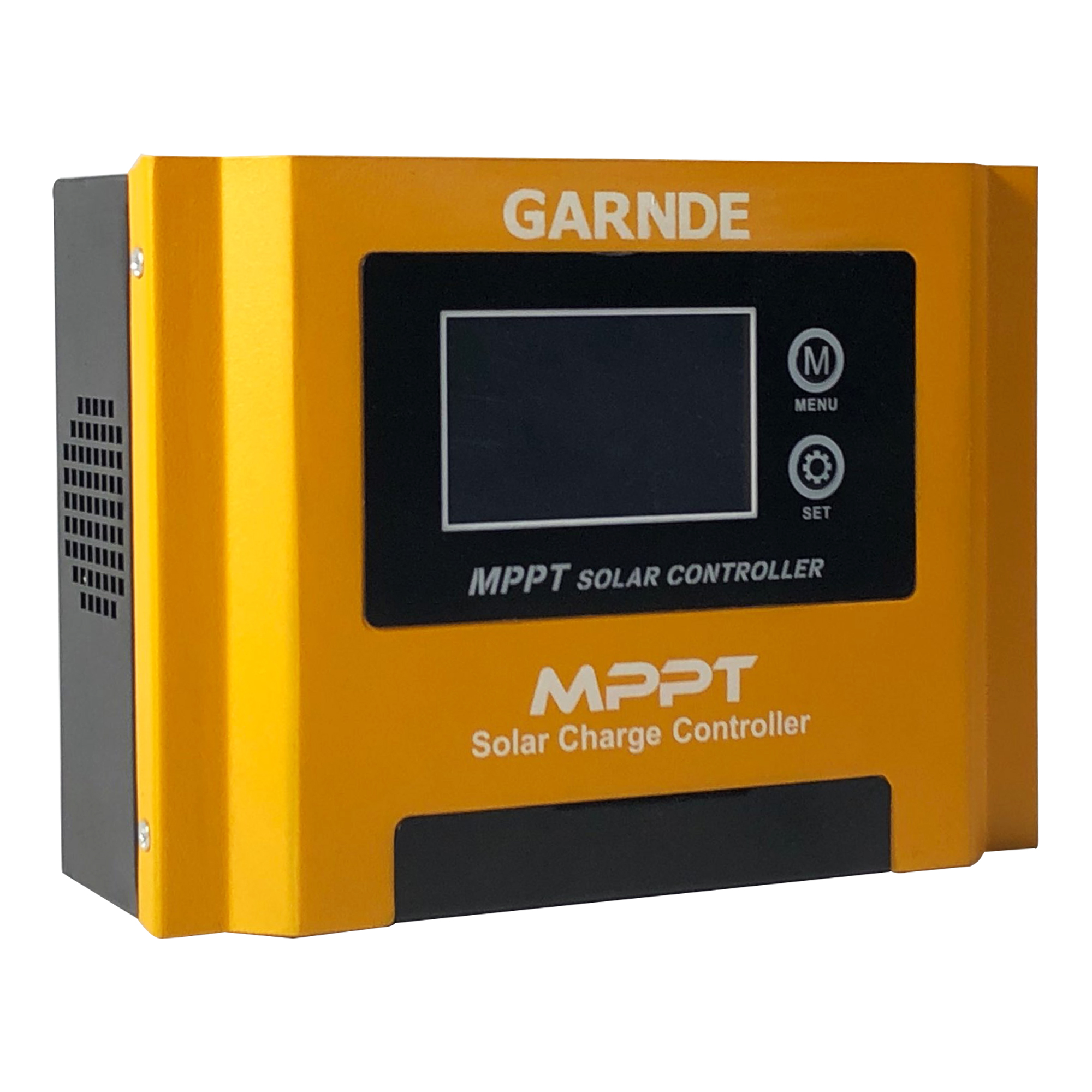

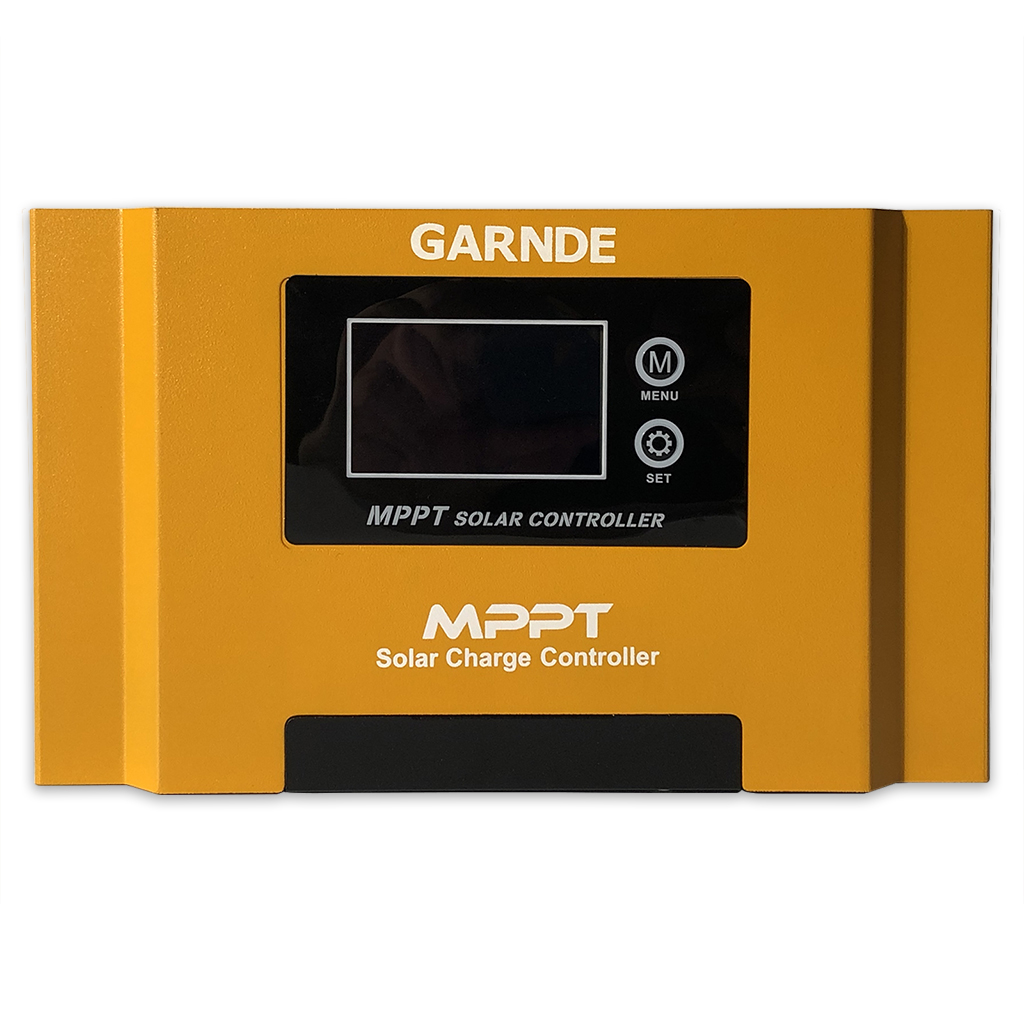

Rosefinch series MPPT Solar Charge Controller
Product Item ： Rosefinch XS, S, M, L, XL, XXL
Rosefinch series solar charge controllers are developed for off-grid solar system and battery backup solar system. Maximum Power Point Tracking (MPPT) charging technology can increase 20-30% power usage efficiency of solar panels more than PWM charging technology. Efficiency up to 99% MPPT charging, the adventurer increases battery lifespan by regulating the charge flowing from the solar panels to the battery bank.
- Share:
-
-
-
-
-

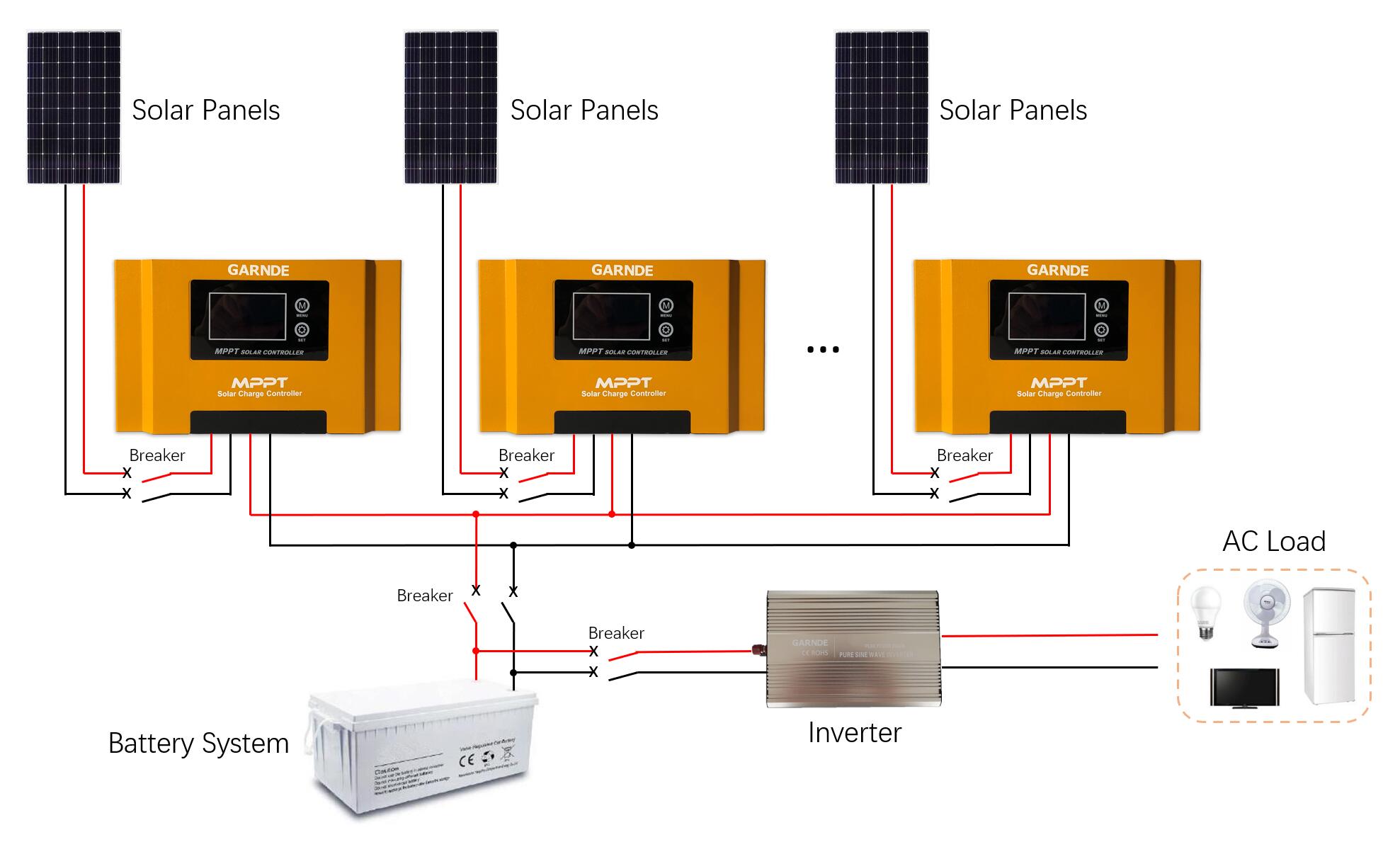

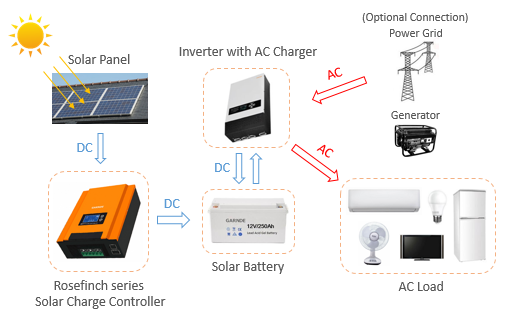

CONNECTION DIAGRAM
FUNCTIONAL CHARACTERISTICS
• Auto identification and selection of system voltage
• High performance 32 bits CPU
• Wide PV input voltage range, convenient for system configuration
• MPPT charge mode, increase power usage efficiency of solar panels
• LCD display, intelligent batteries charging status display
• Running status display of solar panels, batteries and loads
• Optional RS485 communication port, convenient for user integration management
• Over-charge protection, over-discharge protection, over-load protection, short-circuit protection and battery wrong-connecting protection, anti-thunder-stroke protection
TECHNICAL SPECIFICATIONS
| Rosefinch XS | Rosefinch S | ||||||
| Model | RF48-10 | RF48-20 | RF48-30 | RF48-40 | RF48-50 | RF48-60 | |
| INPUT | |||||||
| Max. PV Input Voltage | 150V | ||||||
| MPPT Voltage Range | 12V | 15V - 120V | |||||
| 24V | 30V - 120V | ||||||
| 48V | 60V - 120V | ||||||
| Max. PV Input Power | 12V | 140 W | 280 W | 420 W | 560 W | 700 W | 840 W |
| 24V | 280 W | 560 W | 840 W | 1120 W | 1400 W | 1680 W | |
| 48V | 560 W | 1120 W | 1680 W | 2240 W | 2800 W | 3360 W | |
| BATTERY CHARGING | |||||||
| Battery System Voltage | 12V/24V/48V auto recognition | ||||||
| Max. Charging Current | 10A | 20A | 30A | 40A | 50A | 60A | |
| Charging mode | Maximum Power Point Tracking (MPPT) | ||||||
| Charging method | Three stages: Constant Current (MPPT); Constant Voltage; Floating Charge | ||||||
| Max. Charging Efficiency | 99% | ||||||
| Battery Types Supported | Lead Acid Battery, Gel Battery, Flooded Battery, Lithium Battery | ||||||
| PROTECTION | |||||||
| Overload Protection | 1.5 times rated current 3s overload protection action, automatic recovery in 1 minute | ||||||
| Output Short Circuit Protection | Hardware protection fuses, automatic recovery in 10 minute | ||||||
| Over Temperature Protection | Charging or discharging stopped when controller temperature over 75℃, Charging or discharging recovery when temperature back to 55℃ | ||||||
| OTHERS | |||||||
| Cooling Method | Intelligent Control Cooling Fan | ||||||
| Remote Control | Optional | ||||||
| Comunication Method | RS485 | ||||||
| Own Consumption | < 20mA | ||||||
| Operating Ambient Temperature | -15℃ - 50℃ | ||||||
| Storage Temperature | -20℃ - 60℃ | ||||||
| Protection Grade | IP20 | ||||||
| Dimensions | 185 x 135 x 65 mm (7.3 x 5.3 x 2.6 inches) | 240 x 143 x 74 mm (9.4 x 5.6 x 2.9 inches) | |||||
| Net Weight | 1.15 kgs (2.5 lbs) | 1.80 kgs (4.0 lbs) | |||||
| Packing | 38 x 25 x 52 cm / 8 pcs; 11.0 kgs/8 pcs | 42 x 31 x 27 cm / 4 pcs; 8.0 kgs/4 pcs | |||||
| Warranty | 2 years | ||||||
| Rosefinch M | Rosefinch L | Rosefinch XL | |||||
| Model | RF48-80 | RF48-100 | RF96-50 | RF96-100 | RF192-50 | RF216-50 | |
| INPUT | |||||||
| Max. PV Input Voltage | 150V | 300V | 450V | ||||
| MPPT Voltage Range | 48V | 60V - 120V | |||||
| 96V | 96V - 240V | ||||||
| 192V | 192V - 360V | ||||||
| 216V | 216V - 360V | ||||||
| Max. PV Input Power | 48V | 4480 W | 5600 W | ||||
| 96V | 5600 W | 11200 W | |||||
| 192V | 11200 W | ||||||
| 216V | 12600 W | ||||||
| BATTERY CHARGING | |||||||
| Battery System Voltage | 12V/24V/48V auto recognition | 96V | 192V | 216V | |||
| Max. Charging Current | 80A | 100A | 50A | 100A | 50A | 50A | |
| Charging mode | Maximum Power Point Tracking (MPPT) | ||||||
| Charging method | Three stages: Constant Current (MPPT); Constant Voltage; Floating Charge | ||||||
| Max. Charging Efficiency | 99% | ||||||
| Battery Types Supported | Lead Acid Battery, Gel Battery, Flooded Battery, Lithium Battery | ||||||
| PROTECTION | |||||||
| Overload Protection | 1.5 times rated current 3s overload protection action, automatic recovery in 1 minute | ||||||
| Output Short Circuit Protection | Hardware protection fuses, automatic recovery in 10 minute | ||||||
| Over Temperature Protection | Charging or discharging stopped when controller temperature over 75℃, Charging or discharging recovery when temperature back to 55℃ | ||||||
| OTHERS | |||||||
| Cooling Method | Intelligent Control Cooling Fan | ||||||
| Remote Control | Optional | ||||||
| Comunication Method | RS485 | ||||||
| Own Consumption | < 20mA | ||||||
| Operating Ambient Temperature | -15℃ - 50℃ | ||||||
| Storage Temperature | -20℃ - 60℃ | ||||||
| Protection Grade | IP20 | ||||||
| Dimensions | 280 x 180 x 100 mm | 315 x 250 x 108 mm | 400 x 300 x 162 mm | ||||
| Net Weight | 3.7 kgs | 4.5 kgs | 5.6 kgs | 10 kgs | 11 kgs | ||
| Packing | 49 x 35 x 35 cm / 4 pcs | 37 x 31 x 34 cm / 2 pcs | 46 x 38 x 21 cm / 1 pc | ||||
| 16.0 kgs / 4 pcs | 11 kgs/2 pcs | 13 kgs/2 pcs | 11 kgs/1 pc | 12 kgs/1 pc | |||
| Warranty | 2 years | ||||||
| Rosefinch XL | Rosefinch XXL | ||||||
| Model | RF240-50 | RF384-50 | RF192-100 | RF216-100 | RF240-100 | RF384-100 | |
| INPUT | |||||||
| Max. PV Input Voltage | 500V | 800V | 450V | 500V | 800V | ||
| MPPT Voltage Range | 192V | 192V - 360V | |||||
| 216V | 216V - 360V | ||||||
| 240V | 240V - 400V | ||||||
| 384V | 384V - 640V | ||||||
| Max. PV Input Power | 192V | 22400 W | |||||
| 216V | 25200 W | ||||||
| 240V | 14000 W | 28000 W | |||||
| 384V | 22400 W | 44800 W | |||||
| BATTERY CHARGING | |||||||
| Battery System Voltage | 240V | 384V | 192V | 216V | 240V | 384V | |
| Max. Charging Current | 50A | 50A | 100A | 100A | 100A | 100A | |
| Charging mode | Maximum Power Point Tracking (MPPT) | ||||||
| Charging method | Three stages: Constant Current (MPPT); Constant Voltage; Floating Charge | ||||||
| Max. Charging Efficiency | 99% | ||||||
| Battery Types Supported | Lead Acid Battery, Gel Battery, Flooded Battery, Lithium Battery | ||||||
| PROTECTION | |||||||
| Overload Protection | 1.5 times rated current 3s overload protection action, automatic recovery in 1 minute | ||||||
| Output Short Circuit Protection | Hardware protection fuses, automatic recovery in 10 minute | ||||||
| Over Temperature Protection | Charging or discharging stopped when controller temperature over 75℃, Charging or discharging recovery when temperature back to 55℃ | ||||||
| OTHERS | |||||||
| Cooling Method | Intelligent Control Cooling Fan | ||||||
| Remote Control | Optional | ||||||
| Comunication Method | RS485 | ||||||
| Own Consumption | < 20mA | ||||||
| Operating Ambient Temperature | -15℃ - 50℃ | ||||||
| Storage Temperature | -20℃ - 60℃ | ||||||
| Protection Grade | IP20 | ||||||
| Dimensions | 400 x 300 x 162 mm | 530 x 410 x 162 mm | |||||
| Net Weight | 10 kgs | 11 kgs | 14.5 kgs | 17.5 kgs | |||
| Packing | 46 x 38 x 21 cm / 1 pc | 60 x 49 x 21 cm / 1 pc | |||||
| 11 kgs/1 pc | 12 kgs/1 pc | 16 kgs/1 pc | 19 kgs/1 pc | ||||
| Warranty | 2 years | ||||||
Rosefinch series MPPT Solar Charge Controller.pdf
