SM series MPPT Solar Charge Controller
Product Item ： SM Medium, Large
SM series solar charge controllers are developed for off-grid solar system and battery backup solar system. Maximum Power Point Tracking (MPPT) charging technology can increase 20-30% power usage efficiency of solar panels more than PWM charging technology. Efficiency up to 99% MPPT charging, the adventurer increases battery lifespan by regulating the charge flowing from the solar panels to the battery bank.
- Share:
-
-
-
-
-

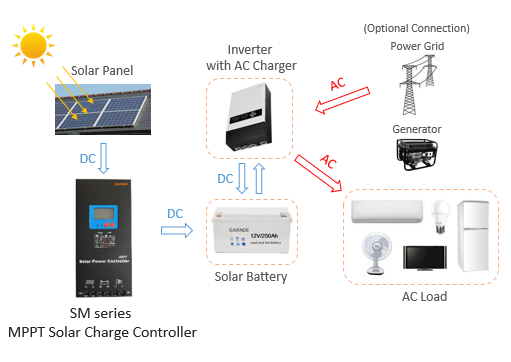

CONNECTION DIAGRAM
FUNCTIONAL CHARACTERISTICS
• Auto identification and selection of system voltage
• High performance 32 bits CPU
• Excellent heat radiation structure with aluminum shell
• EMC design
• MPPT charge mode, increase power usage efficiency of solar panels
• LCD display, intelligent batteries charging status display
• Running status display of solar panels, batteries and loads
• External temperature sensor, high precision temperature compensation
• Auto save of settings
• Over-charge protection, over-discharge protection, over-load protection, short-circuit protection and battery wrong-connecting protection, anti-thunder-stroke protection
TECHNICAL SPECIFICATIONS
| SM Medium | ||||
| Model | SM24-20 | SM24-30 | SM24-40 | |
| INPUT | ||||
| Max. PV Input Voltage | 100V | |||
| MPPT Voltage Range | 12V | 13V - 100V | ||
| 24V | 26V - 100V | |||
| Max. PV Input Power | 12V | 260 W | 400 W | 530 W |
| 24V | 530 W | 790 W | 1060 W | |
| BATTERY CHARGING | ||||
| Battery System Voltage | 12V/24V auto recognition | |||
| Max. Charging Current | 20A | 30A | 40A | |
| Charging mode | Maximum Power Point Tracking (MPPT) | |||
| Max. Charging Efficiency | 98% | |||
| Battery Types Supported | Lead Acid Battery, Gel Battery, Flooded Battery, Lithium Battery | |||
| PROTECTION | ||||
| PV Input Over Voltage Protection | Charging stopped when PV input voltage exceed 140V, automatic recovery in 1 minute | |||
| Over Current Protection | Charging stopped when over 1.1 times rated current, automiatic recovery in 1 minute | |||
| Under Voltage Protection | 10.8V/21.6V ± 1% | |||
| Under Voltage Recovery | 12.8V/25.6V ± 1% | |||
| Overload Protection | 1.5 times rated current 3s overload protection action, automatic recovery in 1 minute | |||
| Output Short Circuit Protection | Hardware protection fuses, automatic recovery in 10 minute | |||
| Over Temperature Protection | Charging or discharging stopped when controller temperature over 75℃, Charging or discharging recovery when temperature back to 55℃ | |||
| OTHERS | ||||
| Load Mode | Options: Pure lighting control mode; Lighting & time control mode; Household mode (Acquiesce in Household mode) | |||
| Cooling Method | Natural Cooling | |||
| Remote Control | Optional | |||
| Comunication Method | RS485 (RS232 optional) | |||
| Own Consumption | < 20mA | |||
| Ambient Temperature | -25℃ - 60℃ | |||
| Protection Grade | IP30 | |||
| Dimensions | 186 x 148 x 65 mm (7.3 x 5.8 x 2.6 inches) | |||
| Weight | 1.5 kgs (3.4 lbs) | |||
| Packing | CTN: 41 x 33 x 23 cm, 12 pcs, 21.8 kgs (16.1 x 13.0 x 9.1 inches, 12 pcs, 40.1 lbs) | |||
| Warranty | 3 years | |||
| SM Large | ||||
| Model | SM48-40 | SM48-50 | SM48-60 | |
| INPUT | ||||
| Max. PV Input Voltage | 150V | |||
| MPPT Voltage Range | 12V | 13V - 150V | ||
| 24V | 26V - 150V | |||
| 48V | 52V - 150V | |||
| Max. PV Input Power | 12V | 540 W | 670 W | 800 W |
| 24V | 1070 W | 1340 W | 1610 W | |
| 48V | 2150 W | 2690 W | 3200 W | |
| BATTERY CHARGING | ||||
| Battery System Voltage | 12V/24V/48V auto recognition | |||
| Max. Charging Current | 40A | 50A | 60A | |
| Charging mode | Maximum Power Point Tracking (MPPT) | |||
| Max. Charging Efficiency | 99% | |||
| Battery Types Supported | Lead Acid Battery, Gel Battery, Flooded Battery, Lithium Battery | |||
| PROTECTION | ||||
| PV Input Over Voltage Protection | Charging stopped when PV input voltage exceed 200V, automatic recovery in 1 minute | |||
| Over Current Protection | Charging stopped when over 1.1 times rated current, automiatic recovery in 1 minute | |||
| Under Voltage Protection | 10.8V/21.6V/43.2V ± 1% | |||
| Under Voltage Recovery | 12.8V/25.6V/51.2V ± 1% | |||
| Overload Protection | 1.5 times rated current 3s overload protection action, automatic recovery in 1 minute | |||
| Output Short Circuit Protection | Hardware protection fuses, automatic recovery in 10 minute | |||
| Over Temperature Protection | Charging or discharging stopped when controller temperature over 75℃, Charging or discharging recovery when temperature back to 55℃ | |||
| OTHERS | ||||
| Load Mode | Options: Pure lighting control mode; Lighting & time control mode; Household mode (Acquiesce in Household mode) | |||
| Cooling Method | Temperature Control Fans | |||
| Remote Control | Optional | |||
| Communication Method | RS485 (RS232 optional) | |||
| Own Consumption | < 20mA | |||
| Ambient Temperature | -25℃ - 60℃ | |||
| Protection Grade | IP30 | |||
| Dimensions | 345 x 188 x 122 mm (13.6 x 7.4 x 4.8 inches) | |||
| Weight | 4.2 kgs (9.3 lbs) | |||
| Packing | CTN: 54 x 44 x 40 cm, 4 pcs, 19.0 kgs (21.3 x 17.3 x 15.7 inches, 4 pcs, 42 lbs) | |||
| Warranty | 3 years | |||
