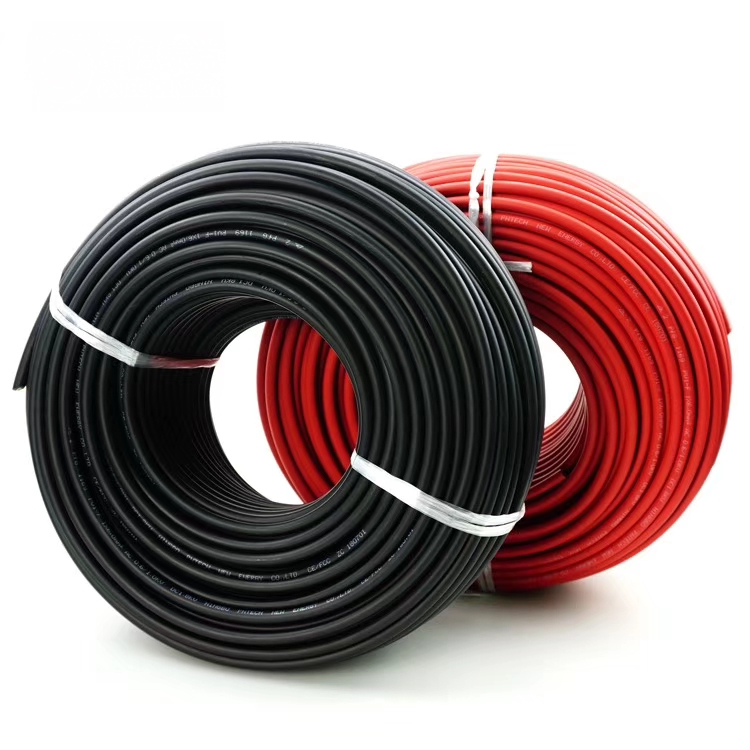

10 sqmm PV Cable

Product Item ： PV1F-10

Application
This cable is specifically designed for connecting photovoltaic system components inside and outside of building and equipment.
Standard
TŰV 2Pfg 1169 08.07
Cable Construction
Conductor	Conductor Material		Stranded tinned copper
	Constitute Structure		80/0.4(±0.005)mm

Insulation	Insulation Material		XLPE
	Insulation Thickness (mm)		0.80

Shield (Braiding lay)	/		/

Jacket	Jacket Material		XLPE
	Jacket Colour		black or red
	Jacket mean Thickness (mm)		0.80
	Jacket Outer Diameter(mm)		8.5±0.1

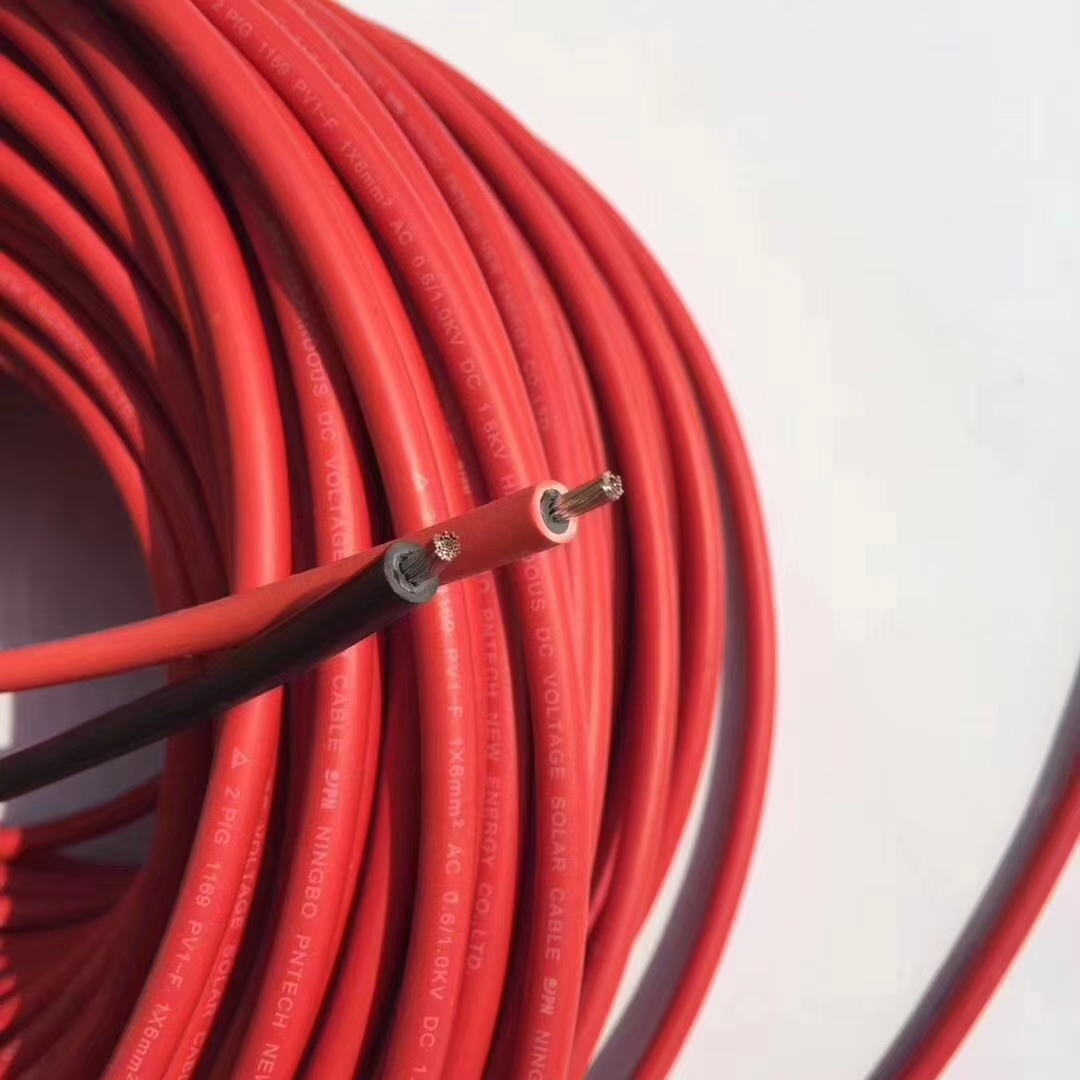

Mark	2 PfG 1169 PV1-F 1x10mm² AC 0.6/1.0KV DC 1.8KV
Electrical Characteristics			Properties
Conductor DC resistance (Ω/KM)		≤ 1.95 (Ω/KM)	Temperature range	-40℃ ～ +90℃
			20,000 hours conductor maximum working temperature	120℃
Rated Voltage (V)		AC Uo/U0.6~1.0KV , DC1.8KV
			The service life of the theory	25 years
