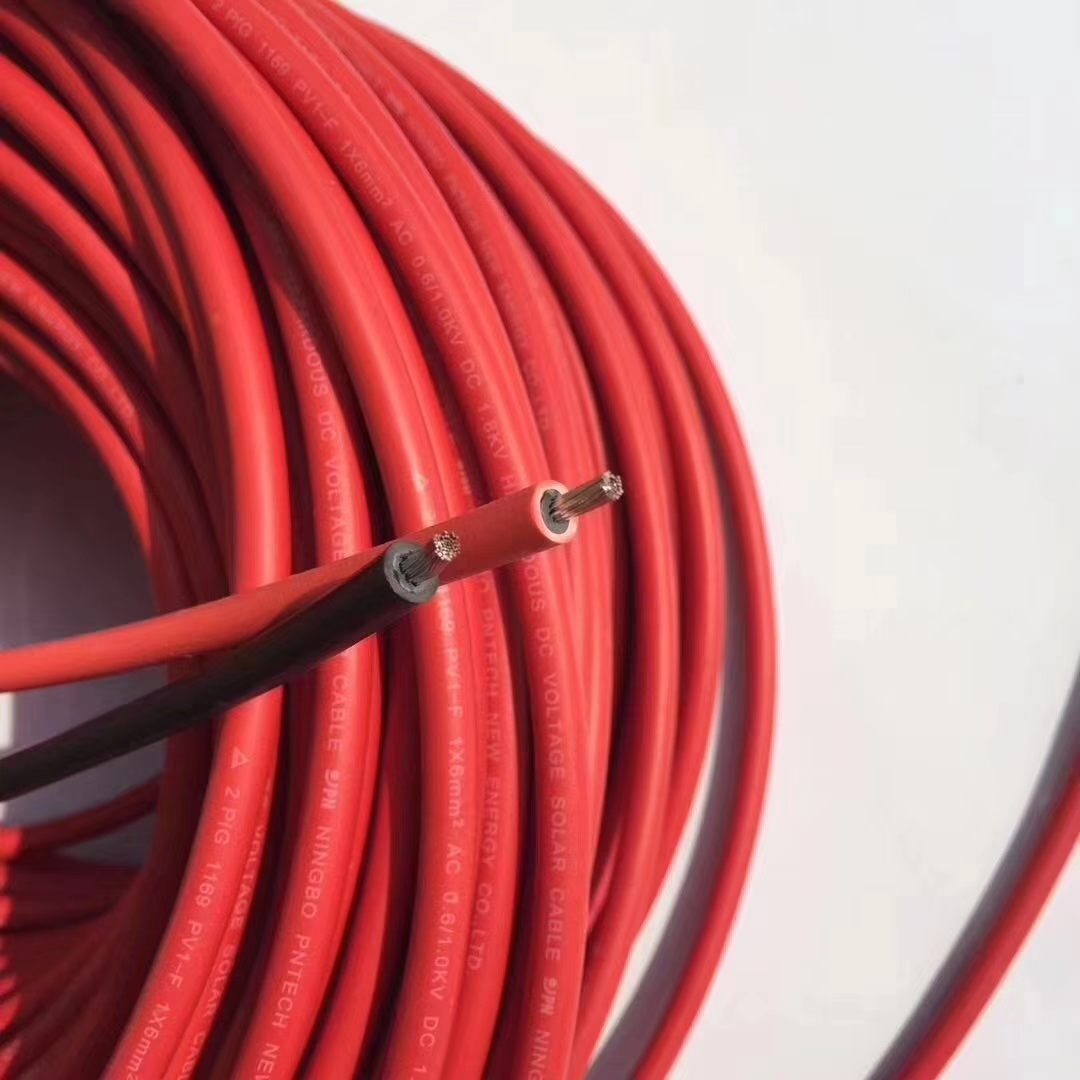

4 sqmm PV Cable

Product Item : PV1F-4

This cable is specifically designed for connecting photovoltaic system components inside and outside of building and equipment.
                                             Cable Construction
ConductorConductor MaterialStranded tinned copper
Constitute Structure56*0.285(±0.005)mm

InsulationInsulation MaterialXLPE
Insulation Thickness (mm)0.50

Shield   (Braiding lay)//

Jacket MaterialXLPE
Jacket Colourblack or red
Jacket mean Thickness (mm)0.50
Jacket Outer Diameter(mm)5.9±0.1
MarkTUV SUD EN   50618:2014    H1Z2Z2-K   1x4.0mm²      DC 1.5KV
                Electrical Characteristics               Properties
Conductor DC resistance (Ω/KM)≤ 5.09 (Ω/KM)Temperature range-40 +90
20,000 hours conductor maximum working temperature120
Rated Voltage (V)AC Uo/U1.0KV, DC1.5KV
The service life of the theory25 years
