GZ series Three Phase Inverter with AC Charger 50KW
Product Item ： GZ50K
GZ series three phase inverter with AC charger is developed for energy storage solar system or uninterruptible power system (UPS). It is an advanced tool of power conversion. It can supply you with AC power converted from a DC power source, while it also has a battery charger with grid power AC input. GZ series inverter with AC charger is a stable power source in power plant for industry, commerce or residence.
- Share:
-
-
-
-
-

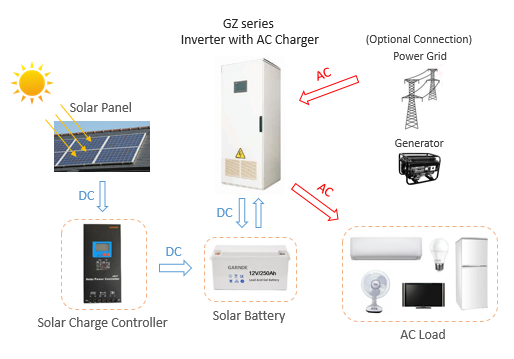

APPLICATION DIAGRAM
FUNCTIONAL CHARACTERISTICS
• Convert 48V/96V/192V/240V/384V DC power to 3/N/PE 380V AC pure sine wave power
• Charge the batteries with grid power AC input, charge current 0 - 45A adjustable
• Working mode options by switch: Battery-Priority mode (DC), Grid-Priority mode (AC)
• Wide AC voltage input voltage to endure voltage instability
• LCD real-time display, concise and straightforward
• Various communication ports and remote controls (RS485/RS232/APP/SNMP/GSM optional)
• Over load protection, over voltage protection, low voltage protection, short circuit protection, over temperature protection, reverse polarity protection
TECHNICAL SPECIFICATIONS
| Model | GZ50K-192 | GZ50K-384 | |
| Working Mode Options | Grid-Priority mode (AC) / Battery-Priority mode (DC) | ||
| Output | Rated Power | 50KW | |
| Surge Power | 150KW | ||
| AC Voltage | 3/N/PE: 380V | ||
| Waveform | Pure sine wave | ||
| Frequency | 50Hz ± 1Hz | ||
| Communication | RS485 (RS232 optional) | ||
| Efficiency | ≥ 85% | ||
| DC Input | DC Voltage | 192V | 384V |
| Grid Power AC Input | AC Voltage | 3/N/PE: 380V | |
| Frequency | 50Hz ± 5Hz | ||
| Battery Charging | Charging Current | 0 - 45A optional | |
| Protection | Overload, Overcurrent, Short-circuit, Over temperature | ||
| Others | Transfer Time | ≤ 4ms | |
| Display | LCD | ||
| Working Temperature | -10℃ - 50℃ | ||
| Cooling | Temperature Control Fans | ||
| Noise | ≤ 55dB | ||
| Dimensions | 715 x 575 x 1275 mm / 28.1 x 22.6 x 50.2 inches | ||
| Net Weight | 297 kgs / 655 lbs | ||
| Packing | CTN: 78 x 64 x 140 cm, 1 pc, 321 kgs / 30.7 x 25.2 x 55.1 inches, 1 pc, 708 lbs | ||
| Warranty | 3 years | ||
Garnde GZ series Three Phase Inverter with AC Charger (EU).pdf
