Product Item : GP6000
GP series pure sine wave power inverter is developed for off-grid solar power system and it can also be used in cars, vessels, during camping and in power failure emergencies. It is an advanced tool of power conversion. It can supply you with AC power converted from a DC power source. GP series pure sine wave power inverter is a stable power source with low harmonic distortion to ensure the widest use of applications.

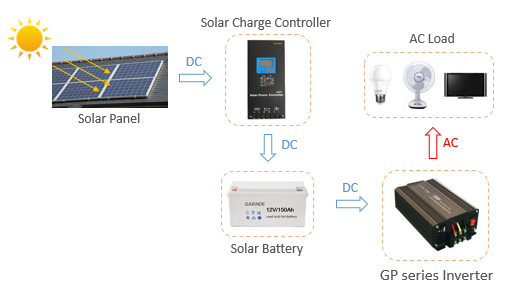

APPLICATION
FUNCTIONAL CHARACTERISTICS
• Convert 12V/24V/48V DC power to 230V AC pure sine wave power
• Output type and socket: optional
• Over load protection
• Over voltage protection
• Low voltage protection
• Short circuit protection
• Over temperature protection
• Reverse polarity protection
• Excellent heat radiation structure with aluminum shell
• With USB port output
• With LED indicator
• With on/off switch
TECHNICAL SPECIFICATIONS - EU
Model | GP6000-24-230 | GP6000-48-230 | |
Output | Rated Power | 6000W | |
Surge Power | 12000W | ||
AC Voltage | 230V | ||
AC Voltage Range | 220 - 240V | ||
Waveform | Pure sine wave | ||
Frequency | 50Hz ± 3Hz | ||
USB Port | 5V 1A | ||
LED Indicator | Green for power on ; Red for power failure / protection | ||
Efficiency | 90 - 94% | ||
Input | DC Voltage | 24V | 48V |
DC Voltage Range | 20 - 31V | 40 - 61V | |
No Load Current | 1.6A | 0.8A | |
Protection | Low Voltage Alarm | 21 ± 0.5V | 42 ± 1V |
Low Voltage Shut Down | 20 ± 0.5V | 40 ± 1V | |
Low Voltage Recovery | 23 - 24V | 47 - 49V | |
Over Voltage Shut Down | 31 ± 0.5V | 61 ± 1V | |
Over Voltage Recovery | 28.5 - 29.5V | 58 - 60V | |
Soft Start | Yes | ||
Others | Working Temperature | -10℃ - 50℃ | |
Cooling Fan | Controlled by load | ||
Dimensions | 518 x 216 x 156 mm / 20.4 x 8.5 x 6.1 inches | ||
Net Weight | 13.0 kgs / 28.7 lbs | ||
Packing | CTN: 64.3 x 31.5 x 25 cm, 1 pc, 15.0 kgs / 25.3 x 12.4 x 9.8 inches, 1 pc, 33 lbs | ||
Warranty | 2 years |
