GP series Pure Sine Wave Inverter 600W

Product Item ： GP600

GP series pure sine wave inverter is developed for off-grid solar power system and it can also be used in cars, vessels, during camping and in power failure emergencies. It is an advanced tool of power conversion. It can supply you with AC power converted from a DC power source. GP series pure sine wave power inverter is a stable power source with low harmonic distortion to ensure the widest use of applications.

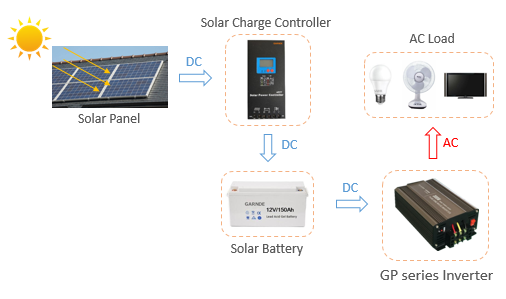

APPLICATION

off grid solar system GP inverter.png

FUNCTIONAL CHARACTERISTICS

• Convert 12V/24V/48V DC power to 230V AC pure sine wave power

• Output type and socket: optional

• Over load protection

• Over voltage protection

• Low voltage protection

• Short circuit protection

• Over temperature protection

• Reverse polarity protection

• Excellent heat radiation structure with aluminum shell

• With USB port output

• With LED indicator

• With on/off switch

TECHNICAL SPECIFICATIONS - EU

Model		GP600-12-230	GP600-24-230
Output	Rated Power	600W
	Surge Power	1200W
	AC Voltage	230V
	AC Voltage Range	220 - 240V
	Waveform	Pure sine wave
	Frequency	50Hz ± 3Hz
	USB Port	5V 1A
	LED Indicator	Green for power on ; Red for power failure / protection
	Efficiency	90 - 94%
Input	DC Voltage	12V	24V
	DC Voltage Range	10 - 15.5V	20 - 31V
	No Load Current	0.6A	0.3A
Protection	Low Voltage Alarm	10.5 ± 0.5V	21 ± 0.5V
	Low Voltage Shut Down	10 ± 0.5V	20 ± 0.5V
	Low Voltage Recovery	11 - 12V	23 - 24V
	Over Voltage Shut Down	15.5 ± 0.5V	31 ± 0.5V
	Over Voltage Recovery	14.3 - 15.3V	28.5 - 29.5V
	Soft Start	Yes
Others	Working Temperature	-10℃ - 50℃
	Cooling Fan	Controlled by load
	Dimensions	232 x 150 x 78 mm / 9.1 x 5.9 x 3.1 inches
	Net Weight	2.1 kgs / 4.6 lbs
	Packing	CTN: 63 x 34 x 38.5 cm, 10 pcs, 24.0 kgs / 24.8 x 13.4 x 15.2 inches, 10 pcs, 52.9 lbs
	Warranty	2 years
