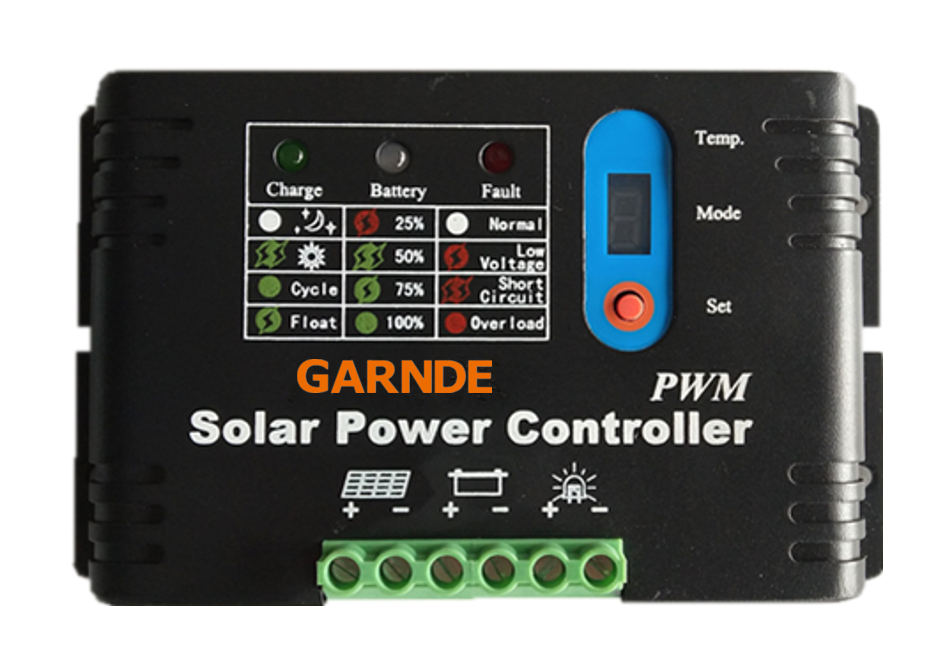

SS series PWM Solar Charge Controller
Product Item ：
SS series solar charge controllers are developed for off-grid solar system and energy storage solar system. Integrating highly efficient PWM charging, the adventurer increases battery lifespan by regulating the charge flowing from the solar panels to the battery bank.
- Share:
-
-
-
-
-
FUNCTIONAL CHARACTERISTICS
• Can be used in 12V/24V/36V/48V/60V/72V off-grid solar power systems
• LED digital display and one button operation
• Balanced charge for battery every week to extend lifespan of battery
• Tandem type PWM charge main electric circuit, 3-6% higher charge efficiency than non-PWM, extend lifespan of solar system
• External temperature sensor, high precision temperature compensation
• Auto save of settings
• LED display for user to read running status of solar panels, batteries and loads
• Over-charge protection, over-discharge protection, over-load protection, short-circuit protection and battery wrong-connecting protection, anti-thunder-stroke protection
TECHNICAL SPECIFICATIONS
| Model | SS24-15 | SS24-20 | SS24-30 | SS48-10 | SS48-20 | SS48-30 | SS60-10 | SS60-20 | SS72-10 | |
| INPUT | ||||||||||
| Max. PV Input Voltage | 30V/50V | 80V/100V | 130V | 160V | ||||||
| Max. PV Input Power | 12V | 180W | 240W | 360W | / | / | / | / | / | / |
| 24V | 360W | 480W | 720W | / | / | / | / | / | ||
| 36V | / | / | / | 360W | 720W | 1080W | / | / | / | |
| 48V | / | / | / | 480W | 960W | 1440W | / | / | / | |
| 60V | / | / | / | / | / | / | 600W | 1200W | / | |
| 72V | / | / | / | / | / | / | / | / | 720W | |
| BATTERY CHARGING | ||||||||||
| Battery System Voltage | 12V/24V auto recognition | 36V/48V auto recognition | 60V | 72V | ||||||
| Max. Charging Current | 15A | 20A | 30A | 10A | 20A | 30A | 10A | 20A | 10A | |
| Charging Mode | PWM | |||||||||
| Battery Types Supported | Lead Acid Battery, Gel Battery, Lithium Battery | |||||||||
| PROTECTION | ||||||||||
| PV Input Over Voltage Protection; Over Current Protection; Under Voltage Protection; Overload Protection | ||||||||||
| Short Circuit Protection; Over Temperature Protection | ||||||||||
| OTHERS | ||||||||||
| Own Consumption | < 10mA | < 20mA | < 20mA | < 20mA | ||||||
| Ambient Temperature | -20℃ - 50℃ | |||||||||
| Protection Grade | IP30 | |||||||||
| Dimensions | 142 x 84 x 24 mm (5.6 x 3.3 x 0.9 inches) | |||||||||
| Weight | 0.3 kgs (0.7 lbs) | 0.3 kgs (0.70 lbs) | ||||||||
| Packing | CTN: 32 x 38 x 15 cm, 40 pcs, 15.2 kgs (12.6 x 15.0 x 5.9 inches, 40 pcs, 33.5 lbs) | |||||||||
| Warranty | 2 years | |||||||||
